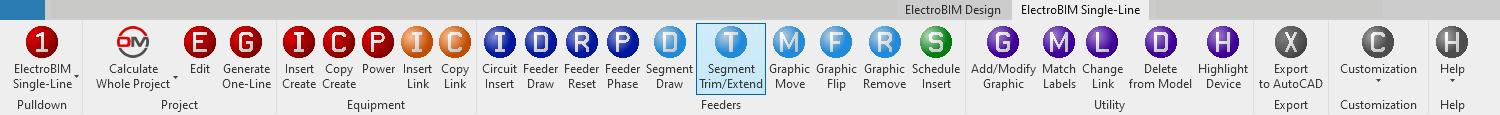

Segment Trim/Extend

Allows you to reconnect two non-parallel feeder segments that have become disconnected on the single-line diagram, similar to the Revit Trim/Extend to Corner command.

You will be prompted to specify a feeder segment.

Select the first feeder segment to trim or extend:

You will then be prompted to specify a second feeder segment.

Select the second feeder segment to trim or extend:

If one or both feeder segments need to be trimmed, you will then be prompted to specify a point on the drafting view inside the corner where you want the feeder segments to connect.

Specify point on inside of corner made by feeder segments:

The feeder segments will be adjusted to form a corner.
