Feeder IDs

This article describes the different feeder ID formats available, how to change formats mid-project, and how to create custom feeder IDs.

Feeder ID Formats​

When feeder IDs are automatically generated, you can set the naming conventions for the IDs in the Feeder ID section of the Project Options command.

Find the Format ▾ option and set the format you want to use.

If you need to change the feeder ID format after starting a project, visit the Changing Feeder ID Formats section below.

There are four additional options related to creating feeder IDs:

  • Service ground letter: ▾ Sets whether automatically generated feeder IDs that indicate a service ground (NEC 250.102) do so with a T, T/J/S, or S.

  • Automatically create feeder IDs: ▾ Sets whether feeder IDs are automatically generated based upon the selected Format ▾.

    If this option is set to No, you will be prompted to define each feeder ID as it is generated. This is useful if you want to create custom feeder IDs; otherwise, set it to Yes.

  • Copy feeder IDs to master schedule when created / Transfer feeder IDs from master schedule if possible: ▾ These options help ensure consistent feeder IDs across projects.

    When both options are enabled, feeder IDs will be pulled from the master schedule if they exist for the feeder types in the project; if a feeder ID does not exist, it will be generated and copied to the master schedule for future projects.

Short​

The Short format uses a compact format that describes the feeder.

If you combine the wire count for neutral and hot wires, this format lists the ampacity of the feeder and the number of wires. Feeders with an equipment ground (NEC 250.122) do not have any additional information.  Other feeders will have the following letters added to the end of the ID:

  • T/J/S Service ground (NEC 250.102)
  • U No ground
  • I Isolated ground

If you separate the wire count for neutral and hot wires, this format lists the ampacity of the feeder. The number of hot wires is listed if it is 1 or 2. Feeders with a neutral and an equipment ground (NEC 250.122) do not have any additional information. Other feeders will have the following letters added to the end of the ID:

  • NN Two neutrals
  • D No neutral
  • T/J/S Service ground (NEC 250.102)
  • U No ground
  • I Isolated ground

If two feeders use the same ID but are different (e.g., same ampacity and wire count but different material or conduit size), .A will be added to the end of the second ID. Subsequent IDs will have .B, .C, etc.

Long​

The Long format uses a more descriptive format for the feeder ID that is meant to be easily understood without referring to the feeder schedule.

First, the feeders are labeled with the ampacity of the feeder.

Next, the number of wires in the feeder is listed. If you combine the wire count for neutral and hot wires, this format lists the combined neutral plus hot wire count. If you do not combine the wire count for neutral and hot wires, this format lists the hot wire count, then one of the following neutral designations:

  • N One neutral
  • NN Two neutrals
  • D No neutral

Finally, if there is a ground, one of the following designations is added:

  • G Equipment ground (NEC 250.122)
  • T/J/S Service ground (NEC 250.102)
  • IG Isolated ground

If two feeders use the same ID but are different (e.g., same ampacity and wire count but different material or conduit size), -A will be added to the end of the second ID. Subsequent IDs will have -B, -C, etc.

Changing Feeder ID Formats​

If you change your feeder ID format at the beginning of a new project, you don't need to do anything else—when you create your single-line diagram, feeder IDs will be generated based upon the selected format.

If you change your feeder ID format during a project, some additional work is required to change the format for existing feeders:

  1. After you have changed the feeder ID format, run the Project Feeder ID Schedule command.

  2. Select all of the feeder IDs in the list and press the  button.

  3. Press the  button to save your changes and close the dialog box.

  4. Run the Calculate Whole Project command.

The feeder IDs on the single-line diagram will be redefined based upon the new feeder ID format.

Troubleshooting​

I followed the instructions, but my feeder IDs either didn't change or changed to something different than the format I set. What happened?

This can occur when your project pulls feeder IDs from the master schedule. There are two solutions:

  • In the Feeder ID section of the Project Options command, find the Transfer feeder IDs from master schedule if possible ▾ option. Set this option to No and press the  button. Then repeat the steps above.

  • Follow the steps above, but run the Master Feeder ID Schedule command for step 1 instead.

    warning

    Do not delete feeder IDs from the master schedule unless you're sure they won't be used for other projects.

Using Custom Feeder IDs​

If none of the built-in feeder ID formats work for your standards, you can define custom feeder IDs. Custom feeder IDs can be defined one-by-one as they are generated, or all at once when you start a project.

First, you will need to change some settings in the Feeder ID section of the Project Options command:

  • Format: ▾ This option sets the format used when feeder IDs are generated automatically. When creating custom feeder IDs, the ID field is initially populated based upon this format; therefore, selecting a format that is close to your custom format will save you some time.

  • Automatically create feeder IDs: ▾ This option sets whether feeder IDs are automatically generated based upon the selected Format ▾. If you want to define your custom feeder IDs as they are generated, set this to No.

  • Copy feeder IDs to master schedule when created / Transfer feeder IDs from master schedule if possible: ▾ These options help ensure consistent feeder IDs across projects. When both options are enabled, feeder IDs will be pulled from the master schedule if they exist for the feeder types in the project; if a feeder ID does not exist, it will be generated and copied to the master schedule for future projects.

Define Feeder IDs as Needed​

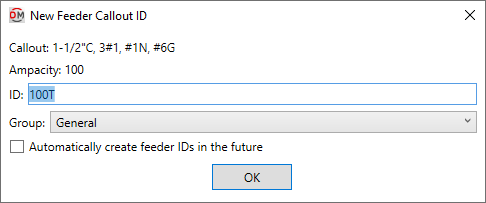

As you draft your single-line diagram, the New Feeder Callout ID dialog box will appear any time a feeder is inserted that does not have a feeder ID already defined:

Enter your desired feeder ID in the ID field.

You can also select a feeder ID group and toggle whether future feeder IDs for this project are created automatically (not recommended for defining custom feeder IDs).

Define Feeder IDs at Project Start​

If you want to define several feeder IDs ahead of time, you can do this using the Create Feeder IDs dialog box in the Project Feeder ID Schedule command.
