Querying Switches

To modify a switch box that is inserted on the drawing, go to
Ribbon: DM Electrical→Modify Devices→ ![Query Device(../modify-devices/query-device.md) icon Query Device
Pulldown Menu: DM Electrical→Modify Devices→Query Device

Select a switch on the drawing. The information in the database regarding the selected switch will be displayed in the Query Switch dialog box.

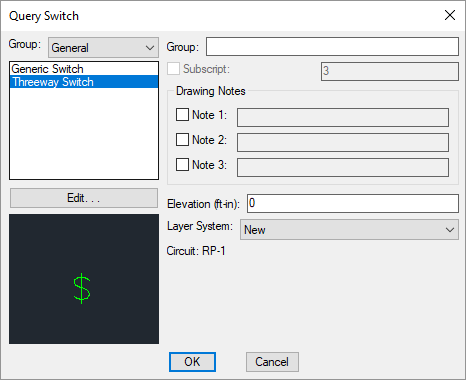

Query Switch Dialog Box​

Switches query switch dialog box

Changes can be made to the switch in the same way as when it was inserted. Visit the Insert Switch section for more information.
